Nume

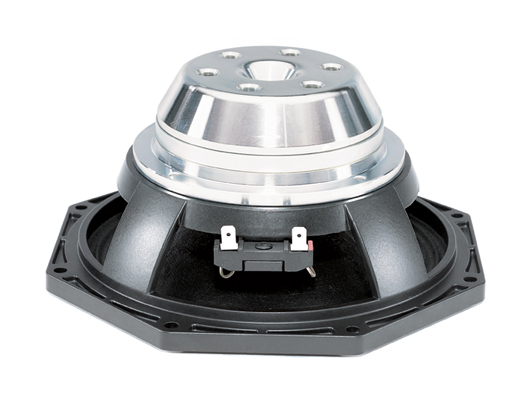

B&C 8NW51
B&C Speakers
Pret: 721 RON
Produse in stoc: 1
Garantie: 1AN

Specificatii tehnice

Nominal Diameter 200 mm (8 in) Mounting & Shipping
Nominal Impedance 8 ohm
Minimum Impedance 7.7 ohm
Continuous Power Handling 400 W
Nominal Power Handling (AES) 200 W
Sensitivity (1W/1m) 97 dB
Frequency Range 70 - 3000 Hz
Voice Coil Diameter 51 mm (2 in)
Winding Material Copper
Former Material Glass Fibre
Magnet Material Neodymium Ring
Winding Depth 18.5 mm (0.73 in)
Magnetic Gap Depth 10 mm (0.4 in)
Flux Density 1.3 T
Surround Shape Double Roll
Cone Shape Exponential
Magnet Type Neodymium Ring
Spider Single
Design
Pole Design T-Pole
Recommended Enclosure vol -
Recommended tuning freq. -
Fs 74 Hz
Re 5.2 ohm
Qes 0.19
Qms 2.7
Qts 0.17
Vas 11 dm3 (0.4 ft3)
Sd 220 cm2 (34.1 in2)
EtaZero 2.4 %
Xmax +- 6 mm
Xvar +- 6 mm
Mms 28 g
Bl 18.9 Txm
Le 0.4 mH
EBP 389 Hz
Overall Diameter 225 mm (8.8 in)
Bolt Circle Diameter 210 mm (8.3 in)
Baffle Cutout Diameter 187 mm (7.4 in)
Depth 100 mm (4 in)
Flange and Gasket
Thickness
11 mm (0.4 in)
Air volume occupied by
driver
1.1 dm3 (0.04 ft3)
Net Weight 3 kg (6.6 lb)
Shipping Weight 3.4 kg (7.5 lb)
Shipping Box 300x160x180 mm
(11.8x6.3x7.1 in)
Service kit RCK008NW518
