Specificatii tehnice
Nominal Diameter 460 mm (18 in)
Nominal Impedance 8 ohm
Minimum Impedance 6.2 ohm
Continuous Power Handling 2400 W
Nominal Power Handling (AES) 1200 W
Sensitivity (1W/1m) 97 dB

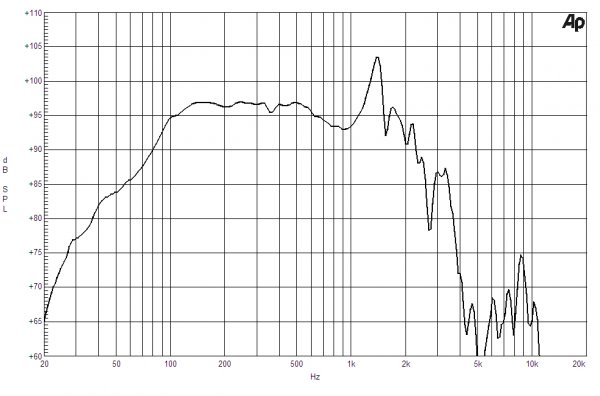

Frequency Range 35 - 1000 Hz
Voice Coil Diameter 100 mm (4 in)
Winding Material Copper
Former Material Glass Fibre
Magnet Material Ceramic Ring
Winding Depth 25 mm (1 in)
Magnetic Gap Depth 12 mm (0.5 in)
Flux Density 1.1 T
Surround Shape Triple Roll
Cone Shape Radial
Magnet Type Ceramic Ring
Spider Double Silicone
Design
Pole Design T-Pole
Recommended Enclosure vol 200 dm3 (7.06 ft3)
Recommended tuning freq. 34 Hz
Fs 34 Hz
Re 5.1 ohm
Qes 0.37
Qms 7.2
Qts 0.35
Vas 212 dm3 (7.5 ft3)
Sd 1210 cm2 (187.6 in2)
EtaZero 2.2 %
Xmax +- 9 mm
Xvar +- 11 mm
Mms 209 g
Bl 25.5 Txm
Le 1.6 mH
EBP 91 Hz
Overall Diameter 460 mm (18 in)
Bolt Circle Diameter 440 mm (17.3 in)
Baffle Cutout Diameter 422 mm (16.6 in)
Depth 209 mm (8.2 in)
Flange and Gasket
Thickness
16 mm (0.62 in)
Air volume occupied by
driver
10.5 dm3 (0.37 ft3)
Net Weight 13 kg (28.6 lb)
Shipping Weight 14.4 kg (31.7 lb)
Shipping Box 500x500x250 mm
(19.7x19.7x9.8 in)
Service kit RCK18TBX1008
