| Pret: | 1525 RON |
| Produse in stoc: | 1 |
| Garantie: | 1AN |
Specificatii tehnice
Nominal Diameter 380 mm (15 in)
Nominal Impedance 8 ohm
Minimum Impedance 6.6 ohm
Continuous PowerHandling1600 W
Nominal Power Handling(AES)800 W
Sensitivity (1W/1m) 98 dB

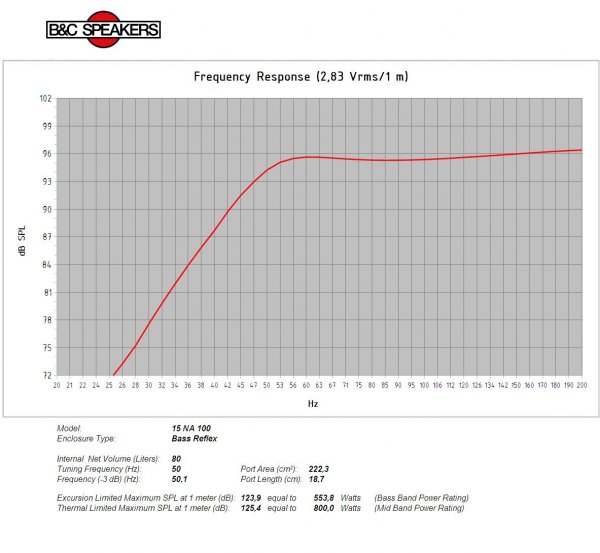

Frequency Range 45 - 2000 Hz
Voice Coil Diameter 100 mm (4 in)
Winding Material Aluminium
Former Material Glass Fibre
Magnet Material Neodymium Inside Slug
Winding Depth 23 mm (0.9 in)
Magnetic Gap Depth 11 mm (0.43 in)
Flux Density 1.2 T
Surround Shape Triple Roll
Cone Shape Exponential
Magnet Type Neodymium Inside Slug
Design
Spider Double Silicone
Pole Design T-Pole
Recommended
Enclosure vol
80 dm3 (2.82 ft3)
Recommended tuning
freq.50 Hz
Fs 47 Hz
Re 5.1 ohm
Qes 0.29
Qms 6.1
Qts 0.28
Vas 88 dm3 (3.1 ft3)
Sd 855 cm2 (132.5 in2)
EtaZero 2.9 %
Xmax +- 10 mm
Xvar +- 9 mm
Mms 136 g
Bl 26.3 Txm
Le 1.2 mH
Parameters
EBP 162 Hz
Overall Diameter 393 mm (15.5 in)
Bolt Circle Diameter 374 mm (14.7 in)
Baffle Cutout Diameter 354 mm (13.9 in)
Depth 180 mm (7.09 in)
Flange and Gasket
Thickness
16 mm (0.62 in)
Air volume occupied by
driver
6 dm3 (0.21 ft3)
Net Weight 9.3 kg (20.5 lb)
Shipping Weight 10.8 kg (23.2 lb)
Shipping Box 500x500x250 mm
(19.7x19.7x9.8 in)
Service kit
