| Pret: | 979 RON |
| Produse in stoc: | 1 |
| Garantie: | 1AN |
Specificatii tehnice
Nominal Diameter 320 mm (12 in) Mounting & Shipping
Nominal Impedance 8 ohm
Minimum Impedance 6.9 ohm
Continuous Power Handling 1000 W
Nominal Power Handling (AES) 500 W
Sensitivity (1W/1m) 99 dB

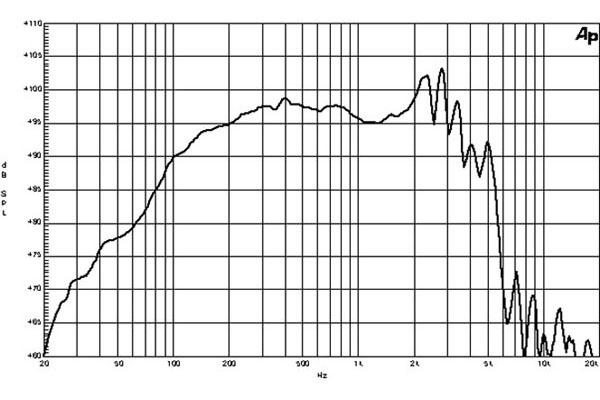

Frequency Range 40 - 2000 Hz
Voice Coil Diameter 76 mm (3 in)
Winding Material Copper
Former Material Glass Fibre
Magnet Material Neodymium Ring
Winding Depth 19 mm (0.75 in)
Magnetic Gap Depth 11 mm (0.43 in)
Flux Density 1.3 T
Surround Shape Triple Roll
Cone Shape Exponential
Magnet Type Neodymium Ring
Spider Single
Design
Pole Design T-Pole
Recommended Enclosure vol -
Recommended tuning freq. -
Fs 40 Hz
Re 5.3 ohm
Qes 0.17
Qms 3.7
Qts 0.16
Vas 76 dm3 (2.7 ft3)
Sd 522 cm2 (80.9 in2)
EtaZero 2.8 %
Xmax +- 8 mm
Xvar +- 10 mm
Mms 77 g
Bl 25.5 Txm
Le 1.25 mH
EBP 235 Hz
Overall Diameter 315 mm (12.4 in)
Bolt Circle Diameter 298 mm (11.7 in)
Baffle Cutout Diameter 283 mm (11.1 in)
Depth 147 mm (5.8 in)
Flange and Gasket
Thickness
14 mm (0.55 in)
Air volume occupied by
driver
2.5 dm3 (0.08 ft3)
Net Weight 4.9 kg (10.8 lb)
Shipping Weight 5.6 kg (12.3 lb)
Shipping Box 340x340x170 mm
(13.4x13.4x6.7 in)
Service kit RCK12NW768
